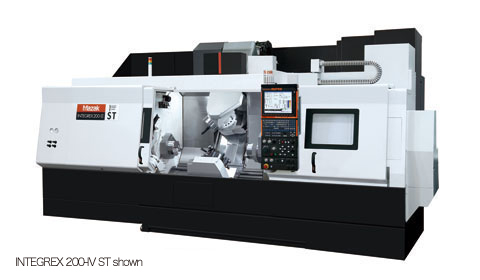

INTEGREX 200-IV S

INTEGREX 200-IV S

Features

INTEGREX 200-IV multi-tasking machine series with second spindle

Property

Designed for DONE IN ONE performance by milling spindle with B-axis and second spindle.

Specification

Model INTEGREX 200-IV S
Chuck size 8"
Maximum machining diameter φ660 mm (φ26.0")
Maximum machining length 1016 mm (40")
Travel ( X / Y / Z / B ) 580 / 160 / 1045 mm / 225°(22.83" / 6.3" / 41.14")
Main spindle ( 30min. rating ) 5000 rpm, 22 kW (30 HP)
Second spindle ( 30min. rating ) 5000 rpm, 18.5 kW (25 HP)
Milling spindle ( 20%ED ) 12000 rpm, 18.5kW (25 HP)
Tool storage capacity 20, *40, *80
Floor space requirement 3820 * 2348 mm (150.39" * 92.44")

* Option

Another machines:INTEGREX 200 Ⅲ S, INTEGREX 200
