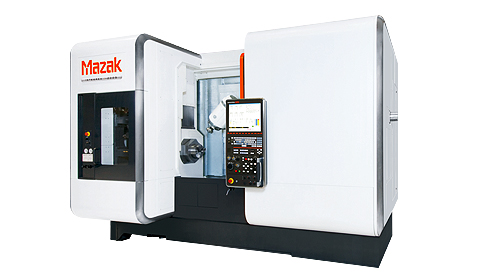

INTEGREX i-200S
Features
1000U machine with second spindle.
INTEGREX i-200S, the fifth generation Mazak multi-tasking machine, features a large machining area and high accuracy performance plus unsurpassed ease of operation thanks to the ergonomic machine design.
Property
Long strokes for large workpiece capacity.
Unsurpassed versatility thanks to B-Axis and C-Axis contouring.
Specification
| Model | INTEGREX i-200S |
|---|---|
| Chuck size | 8" |
| Maximum machining diameter | Ø658 mm (Ø25.9") |
| Maximum machining length *1 | 1011 mm (39.8") |
| Travel ( X / Y / Z ) | 615 / 250 / 1077 mm ( 24.21" / 9.84" / 42.4" ) |
| Travel ( W / B ) | 1066 mm ( 41.97" ) / -30°～210° |
| Main spindle ( 30min. rating ) | 5000 rpm, 22 kW (30 HP) |
| Second spindle ( 30min. rating ) | 5000 rpm, 18.5 kW (25 HP) |
| Milling spindle ( 20%ED ) | 12000 rpm, 22kW (30 HP) |
| Tool storage capacity | 36, *72 |
| Floor space requirement | 3990 × 2800 mm (157.1" × 110.2") |
* Option *1 Maximum speed of the main spindle is limited by the chuck specifications. Spindle speed and maximum turning length depends on chuck specifications.
